描述:
工作壓力：150 PSI
低扭力把手開關方便
價格實惠
重量輕，不占空間
適用于游泳池產業
特性:
規格:
| 型號 | 尺寸 | 規格 | 材質 | 墊座 | O-環 | 接口 |
| VP-310 / 320 | 1-1/2"~2" | ANSI, JIS, DIN, BS | PVC | PTFE / EPDM | EPDM | Socket,Threaded |
| VP-315 / 325 | 1-1/2"~2" | ANSI, JIS, DIN, BS | ABS+PC | PTFE / EPDM | EPDM | Socket,Threaded |

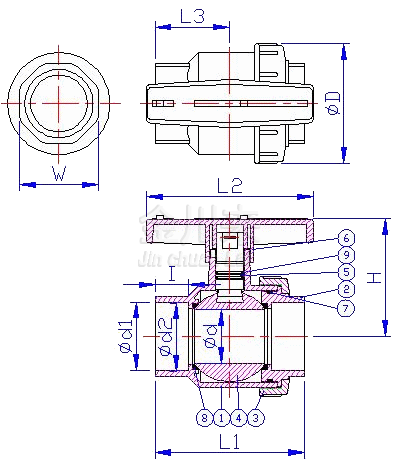

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,PP+GF,ABS+PC | 1 |
| 2 | 外特普(BODY CAP) | UPVC,PP+GF,ABS+PC | 1 |
| 3 | 螺帽(UNION NUT) | UPVC,PP+GF,ABS+PC | 1 |
| 4 | 球(BALL) | UPVC,PP+GF,ABS+PC | 1 |
| 5 | 中心柱(STEM) | UPVC,PP+GF,ABS+PC | 1 |
| 6 | 把手(HANDLE) | ABS | 1 |
| 7 | O環(UNION O-RING) | EPDM,FPM | 1 |
| 8 | 墊座(SEAT SEAL) | EPDM,PTFE | 2 |
| 9 | O環(STEM O-RING) | EPDM,FPM | 2 |
|
SIZE NOM |
1-1/2" (40mm) |
2" (50mm) |
|
| JIS | ?d1 | 48.46 | 60.56 |
| ?d2 | 47.54 | 59.44 | |
| I | 34.9 | 38.1 | |
| ANSI | ?d1 | 48.56 | 60.63 |
| ?d2 | 48.11 | 60.17 | |
| I | 34.93 | 38.1 | |
| DIN | ?d1 | 50.3 | 63.3 |
| ?d2 | 50.1 | 63.1 | |
| I | 31 | 38 | |
| BS | ?d1 | 48.4 | 60.5 |
| ?d2 | 48.2 | 60.3 | |
| I | 30 | 36 | |
| thd./in | NPT | 11.5 | 11.5 |
| BSPT | 11 | 11 | |
| ?D | 87.5 | 105 | |
| ?d | 38.5 | 48 | |
| L1 | 115 | 130 | |
| L2 | 121 | 147 | |
| L3 | 56.5 | 64.7 | |
| H | 85 | 104 | |
| W | 60 | 70 | |
